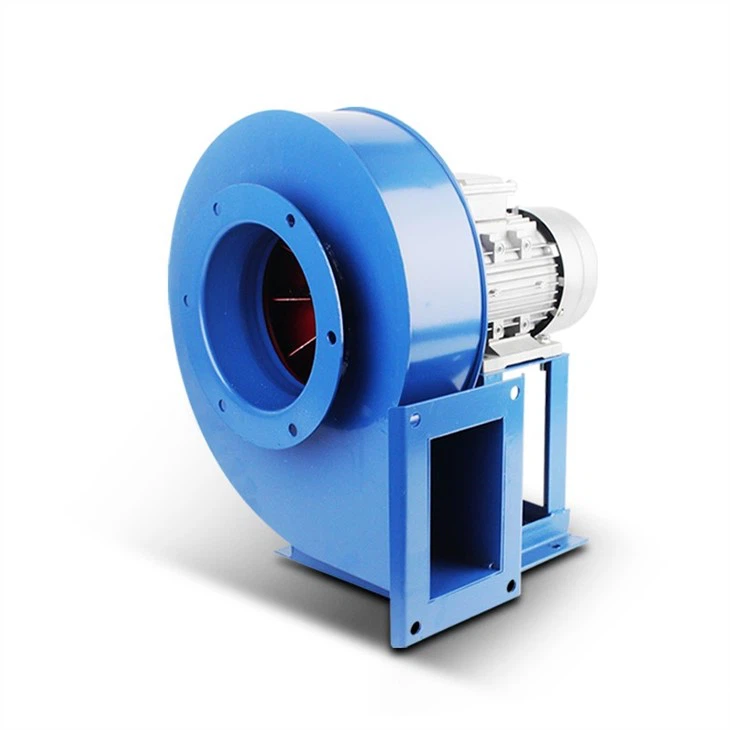

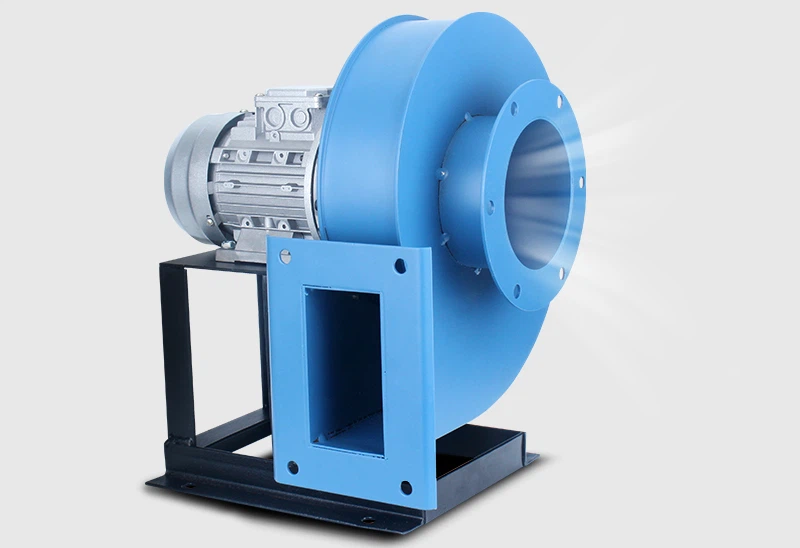

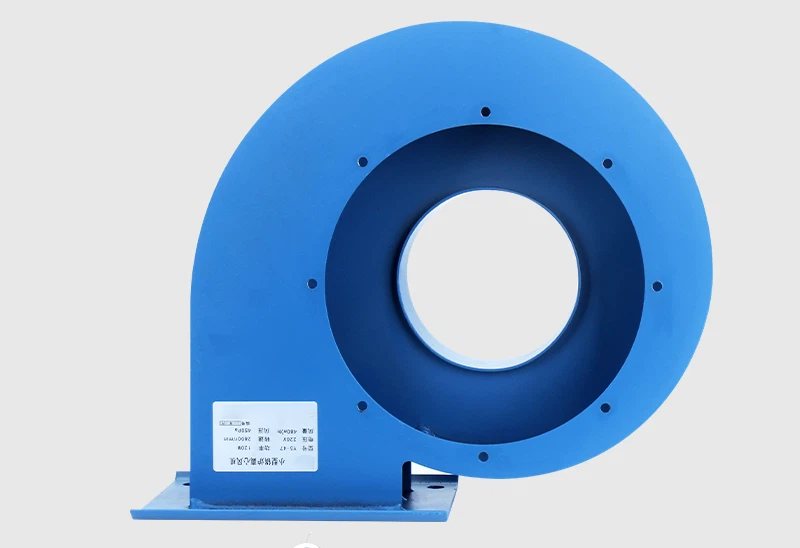

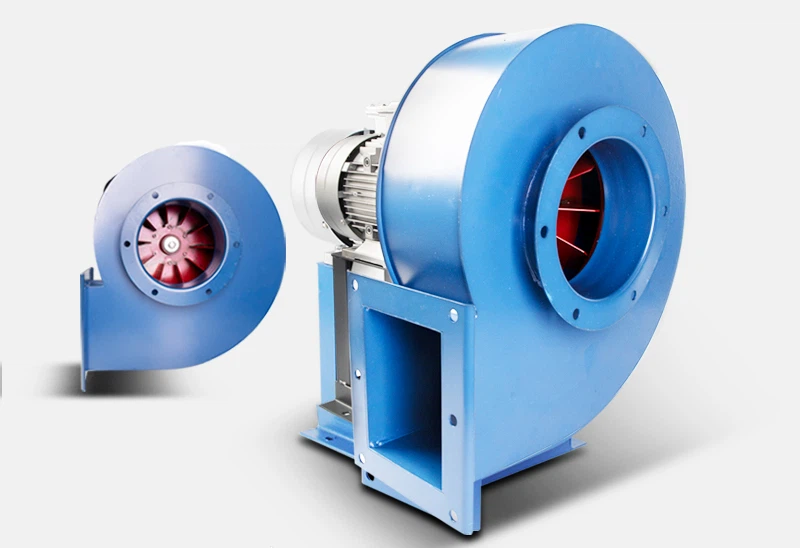

AC High Temperature Resistant Small Boiler Fan
AC High Temperature Resistant Small Boiler Fan with durable aluminum housing and heat-resistant motor. High airflow (up to 3800 m³/h), stable performance, corrosion-resistant, ideal for boilers and harsh industrial environments.
Description

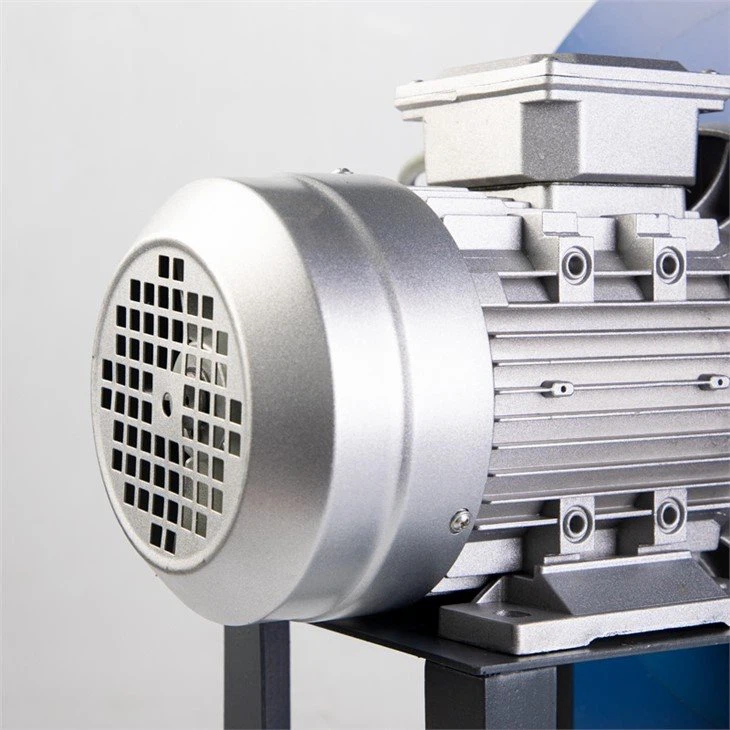

This AC High Temperature Resistant Small Boiler Fan is a fan that exists near the air handling unit or furnace, which is composed of blower, air filter, evaporator coil and other accessories. It is designed to achieve good cooling effect by regulating the air. It is equipped with high-temperature resistant motor and heat insulation connection base (with cooling fan blades), which can not only ensure the normal operation of the fan, but also be used in various harsh working environments. In addition, it uses the motor shell made of aluminum alloy die-casting for spraying or electrophoresis treatment, which will not rust easily in the long use process, and has a long service life.
Features
1.Our AC High Temperature Resistant Small Boiler Fan is equipped with high temperature resistant high quality bearings and removable feet, which makes the installation more flexible and changeable.
2.Although its size is relatively small, it has a large diameter of tuyere, so it can have a large air volume and effectively improve the cooling efficiency.
3.The fan is equipped with a high-quality carbon steel shell, which is accurately shaped by advanced cutting technology, so it has beautiful appearance, wear-resistant and impact resistance.

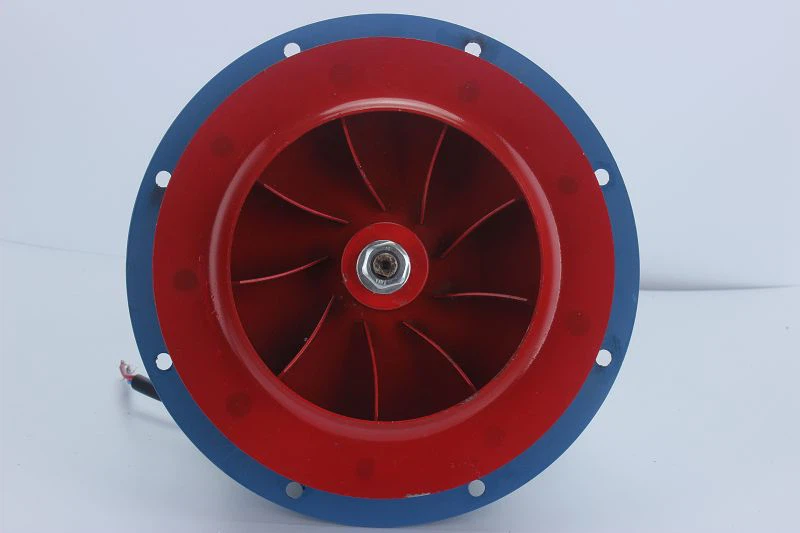

4.It is made of high-quality metal materials with a solid straight-wing impeller. It has the characteristics of stable structure and stronger wind force.
Product parameters:
| Machine number | Power (kW) |
Voltage (V) |
Rotating speed (r/min) |
Flow (m3/h) |
Full pressure (Pa) |
| Y5-47 | 0.06 | 220/380 | 2800 | 240 | 310 |
| Y5-47 | 0.09 | 220/380 | 2800 | 350 | 360 |
| Y5-47 | 0.12 | 220/380 | 2800 | 480 | 450 |
| Y5-47 | 0.18 | 220/380 | 2800 | 650 | 510 |
| Y5-47 | 0.25 | 220/380 | 2800 | 860 | 580 |
| Y5-47 | 0.37 | 220/380 | 2800 | 1100 | 650 |
| Y5-47 | 0.55 | 220/380 | 2800 | 1450 | 680 |
| Y5-47 | 0.75 | 220/380 | 2800 | 1810 | 790 |
| Y5-47 | 1.1 | 220/380 | 2800 | 2250 | 940 |
| Y5-47 | 1.5 | 380 | 2800 | 2800 | 1140 |
| Y5-47 | 2.2 | 380 | 2800 | 3100 | 1280 |
| Y5-47 | 3 | 220/380 | 2800 | 3800 | 1580 |

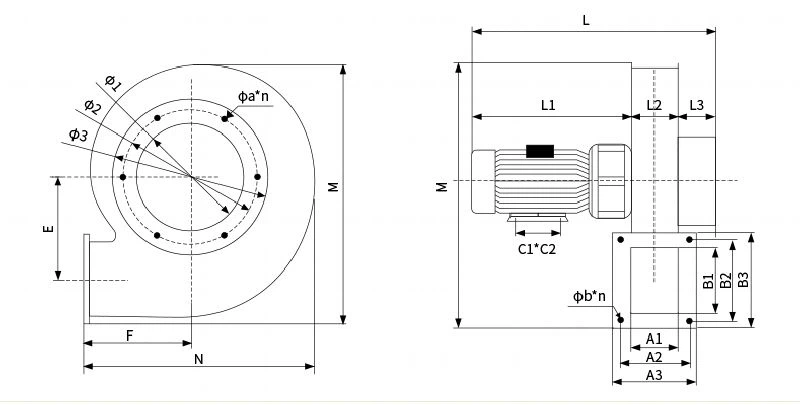

| Model | Power (W) |
Outlet flange size | Inlet flange size | |||||||||
| A1 | A2 | A3 | B1 | B2 | B3 | Φb*n | Φ1 | Φ2 | Φ3 | Φa*n | ||
| Y5-47 | 60 | 61 | 95 | 118 | 60 | 95 | 118 | 8*4 | 100 | 135 | 156 | 10*6 |
| Y5-47 | 90 | 59 | 85 | 122 | 85 | 115 | 141 | 10*4 | 100 | 135 | 156 | 10*6 |
| Y5-47 | 120 | 60 | 92 | 138 | 110 | 150 | 176 | 10*4 | 108 | 146 | 166 | 10*6 |
| Y5-47 | 180 | 60 | 92 | 138 | 110 | 150 | 176 | 10*4 | 108 | 146 | 166 | 10*6 |
| Y5-47 | 250 | 62 | 93 | 139 | 121 | 160 | 186 | 11*4 | 128 | 180 | 207 | 11*6 |
| Y5-47 | 370 | 78 | 109 | 155 | 121 | 160 | 186 | 11*4 | 128 | 180 | 207 | 11*6 |
| Y5-47 | 550 | 85 | 116 | 165 | 136 | 176 | 202 | 11*4 | 150 | 200 | 224 | 11*6 |
| Y5-47 | 750 | 102 | 133 | 179 | 36 | 176 | 202 | 11*6 | 150 | 200 | 224 | 11*6 |
| Y5-47 | 1100 | 120 | 151 | 197 | 156 | 196 | 222 | 11*6 | 160 | 200 | 228 | 11*6 |
| Y5-47 | 1500 | 131 | 162 | 208 | 176 | 216 | 242 | 11*6 | 160 | 200 | 228 | 11*6 |
| Y5-47 | 2200 | 130 | 161 | 206 | 206 | 246 | 272 | 11*6 | 186 | 230 | 254 | 11*6 |
| Y5-47 | 3000 | 150 | 190 | 220 | 230 | 266 | 298 | 11*6 | 248 | 290 | 325 | 11*6 |
| Model | Power (W) |
Size | |||||||||
| C1 | C2 | L1 | L2 | L3 | L | M | N | E | F | ||
| Y5-47 | 60 | 70 | 90 | 192 | 65 | 41 | 298 | 221 | 193 | 72 | 95 |
| Y5-47 | 90 | 70 | 90 | 192 | 62 | 41 | 295 | 259 | 223 | 85 | 108 |
| Y5-47 | 120 | 70 | 90 | 192 | 64 | 41 | 297 | 325 | 281 | 107 | 131 |
| Y5-47 | 180 | 70 | 90 | 192 | 64 | 41 | 297 | 325 | 281 | 107 | 131 |
| Y5-47 | 250 | 80 | 100 | 220 | 67 | 47 | 334 | 370 | 320 | 127 | 148 |
| Y5-47 | 370 | 80 | 100 | 220 | 83 | 47 | 350 | 370 | 320 | 127 | 148 |
| Y5-47 | 550 | 90 | 112 | 275 | 90 | 43 | 408 | 420 | 364 | 148 | 167 |
| Y5-47 | 750 | 90 | 112 | 275 | 108 | 43 | 426 | 420 | 364 | 148 | 167 |
| Y5-47 | 1100 | 100 | 125 | 300 | 125 | 44 | 467 | 470 | 408 | 166 | 185 |
| Y5-47 | 1500 | 100 | 140 | 325 | 135 | 42 | 502 | 506 | 438 | 176 | 202 |
| Y5-47 | 2200 | 125 | 140 | 345 | 135 | 45 | 525 | 549 | 478 | 186 | 202 |
| Y5-47 | 3000 | 140 | 160 | 385 | 157 | 45 | 605 | 535 | 470 | 195 | 214 |
