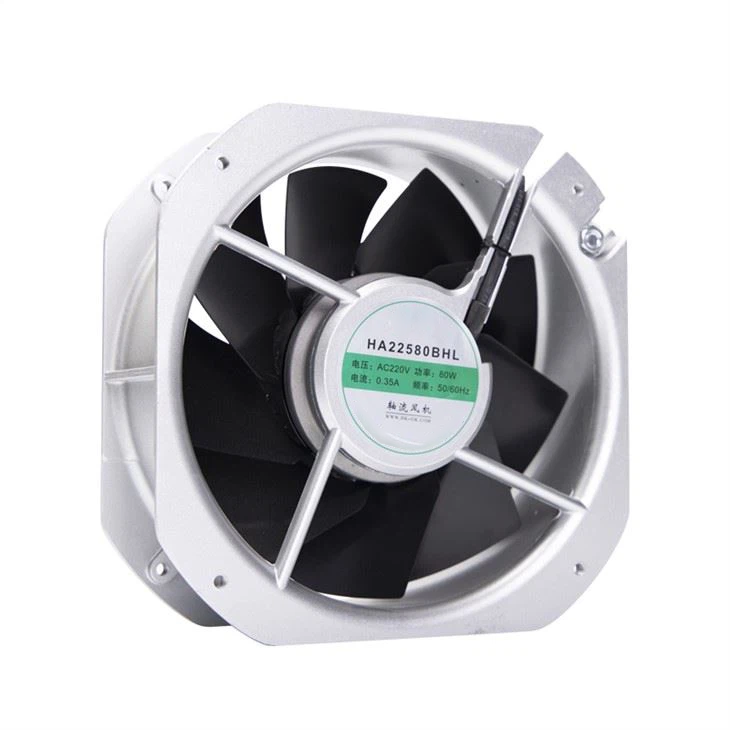

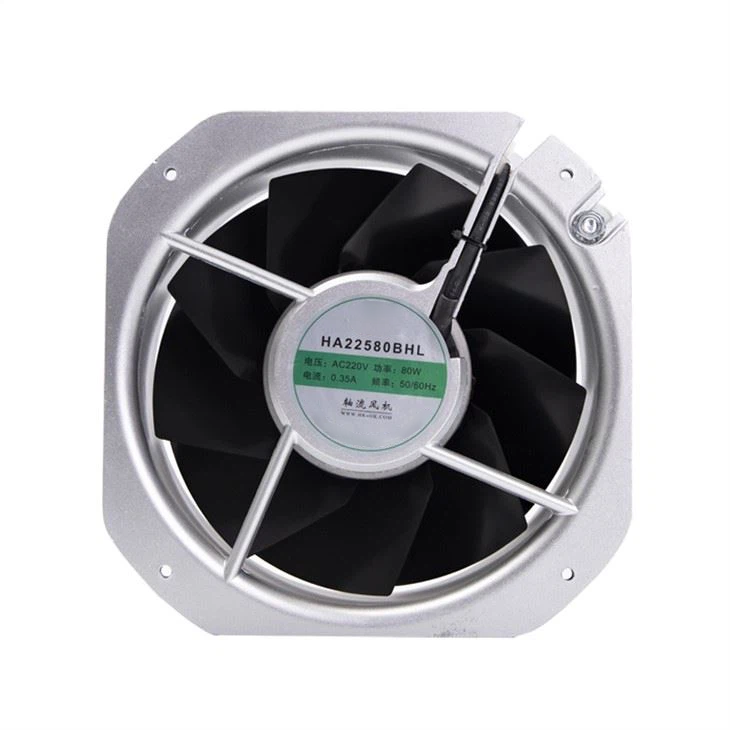

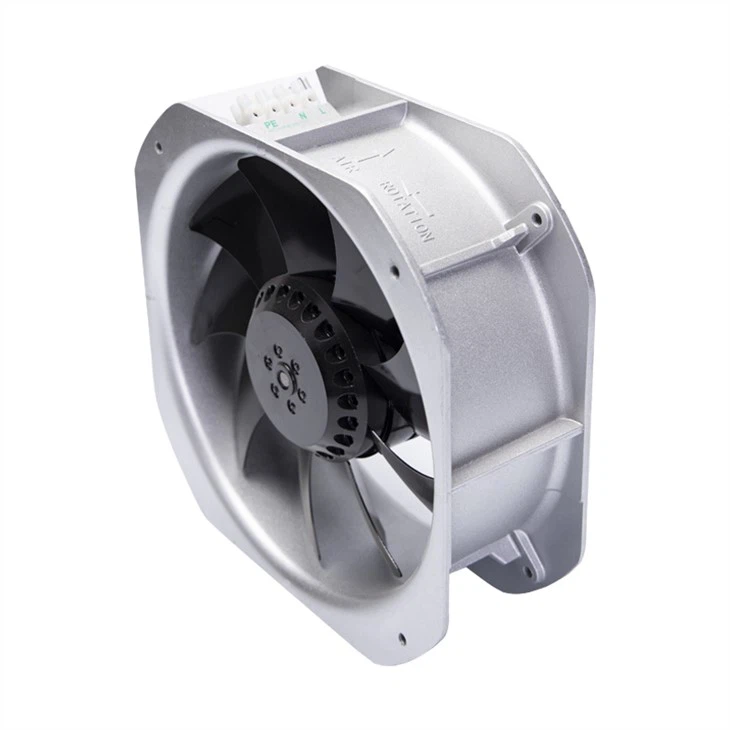

AC Brushless Cooling Small Axial Fan
Size：225mm×225mm×80mm Housing：Aluminum Alloy Material：Iron Leaf Lead Wire：AWG#22 UL 1007（Optional）
Introduction
The AC Brushless Cooling Small Axial Fan is made of thickened aluminum, which has the characteristics of high strength, wear resistance, long life and smooth surface. Secondly, we have a metal fan blade, after fine polishing and painting, has the characteristics of no injury to hands and high strength. All in all, it is a very good product.
Feature
The AC Brushless Cooling Small Axial Fan when locked, automatically cut off the fan working current, the fan is in a low current state to protect the fan from being burned by high current. Another function of auto restart: the fan automatically outputs a signal to start the fan every certain time. When the fan is not in a locked state, the fan will update, start and run normally. Secondly, our products are very sturdy and have the feature of not easy to damage. Finally, our products have the feature of corrosion resistance.
Product Specification:

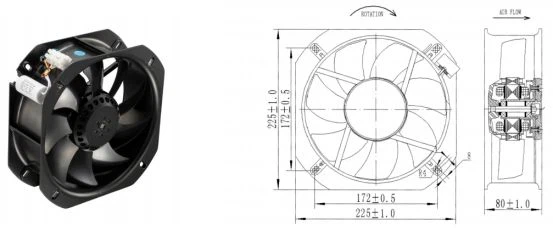

Size：225mm×225mm×80mm
Housing：Aluminum Alloy
Material：Iron Leaf
Lead Wire：AWG#22 UL 1007（Optional）
Operation：-10℃ ~+105℃
Approvals：CCC、CE
| MODEL | Voltage (VAC) |
Frequency (Hz) |
Current (AMP) |
Power (W) |
Speed (RPM) |
Air Flow (m3/hr) |
Air Flow (CFM) |
Noise Lp:dB(A) |
Weight (kg) |
| HA2258002HB-1 | 230 | 50 | 0.4 | 80 | 2300 | 1000 | 588 | 65 | 2.112 |
| HA2258002HB-2 | 230 | 60 | 0.4 | 80 | 2600 | 1150 | 676 | 68 | 2.112 |
| HA2258003HB-1 | 380 | 50 | 0.2 | 80 | 2300 | 1000 | 588 | 65 | 2.112 |
| HA2258003HB-2 | 380 | 60 | 0.2 | 80 | 2600 | 1150 | 676 | 65 | 2.112 |
| HA2258003HB-3 | 380 | 50 | 0.21 | 80 | 2300 | 1000 | 588 | 65 | 2.112 |
| HA2258003HB-4 | 380 | 60 | 0.21 | 80 | 2600 | 1150 | 676 | 65 | 2.112 |
