DC Small Quiet Fan
Size：30mm×30mm×10mm Housing：Plastic with fiber glass filled UL94V-0 Material：Sheet steel、PBT+30GF UL94V-0 Operation：-10℃ ~+70℃
Introduction
The DC Small Quiet Fan when locked, automatically cut off the fan working current, the fan is in a low current state to protect the fan from being burned by high current. Another function of auto restart: the fan automatically outputs a signal to start the fan every certain time. When the fan is not in a locked state, the fan will update, start and run normally. Secondly, our products are very sturdy and have the feature of not easy to damage. Finally, our products are corrosion resistant and we have a variety of specifications available for your selection.
Feature
The DC Small Quiet Fan are made of high-quality materials, which are non-toxic and tasteless. Secondly, when it runs, it runs very fast and has the feature of no noise. More importantly, it is very easy to install and can save you a lot of time and energy. Finally, our products are very durable and have a very long service life.
Product Specification:

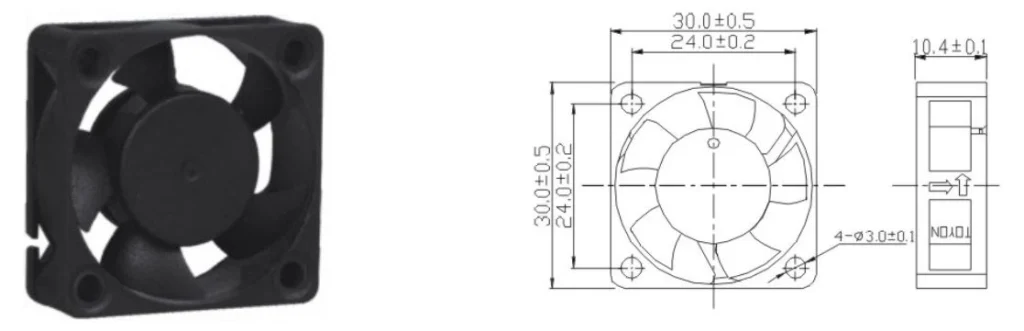

Size：30mm×30mm×10mm
Housing：Plastic with fiber glass filled UL94V-0
Material：Sheet steel、PBT+30GF UL94V-0
Operation：-10℃ ~+70℃
Approvals：CCC、CE
| MODEL | Voltage (VDC) |
Rated Voltage （VDC） |
Current (AMP) |
Speed (RPM) |
Air Flow (m3/hr) |
Air Flow (CFM) |
Static Pressure （mmH2O） |
Noise Lp:dB(A) |
Weight (kg) |
| HD30105LS(B) | 5 | 3.5 | 0.17 | 7000 | 5.1 | 3 | 2.85 | 21.1 | 8 |
| HD301012LS(B) | 12 | 6 | 0.09 | 7000 | 5.1 | 3 | 2.85 | 21.1 | 8 |
| HD301012MS(B) | 12 | 6 | 0.12 | 9000 | 6.46 | 3.8 | 4.71 | 26.5 | 8 |
| HD301012HS(B) | 12 | 6 | 0.17 | 11000 | 7.99 | 4.7 | 7.03 | 30.9 | 8 |
