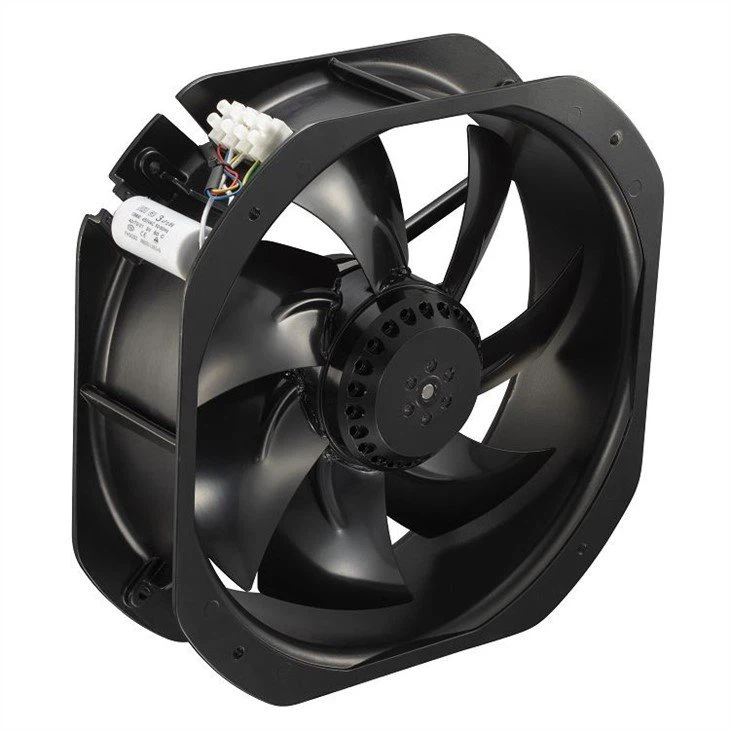

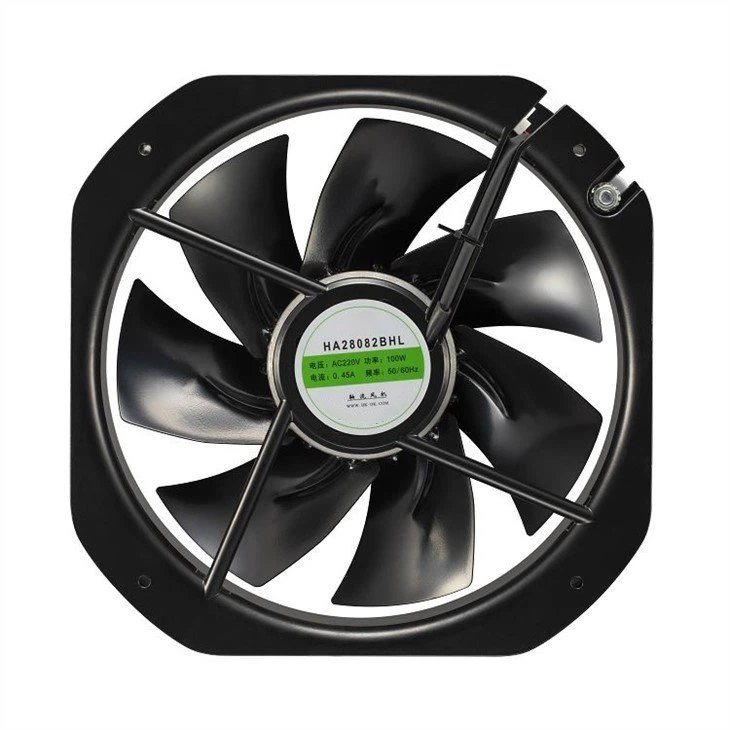

AC Cabinet Cooling Fan
Size：280mm×280mm×80mm Housing：Aluminum Alloy Material：Sheet steel、PBT+30GF UL94V-0 Lead Wire：AWG#22 UL 1007（Optional）
Introduction

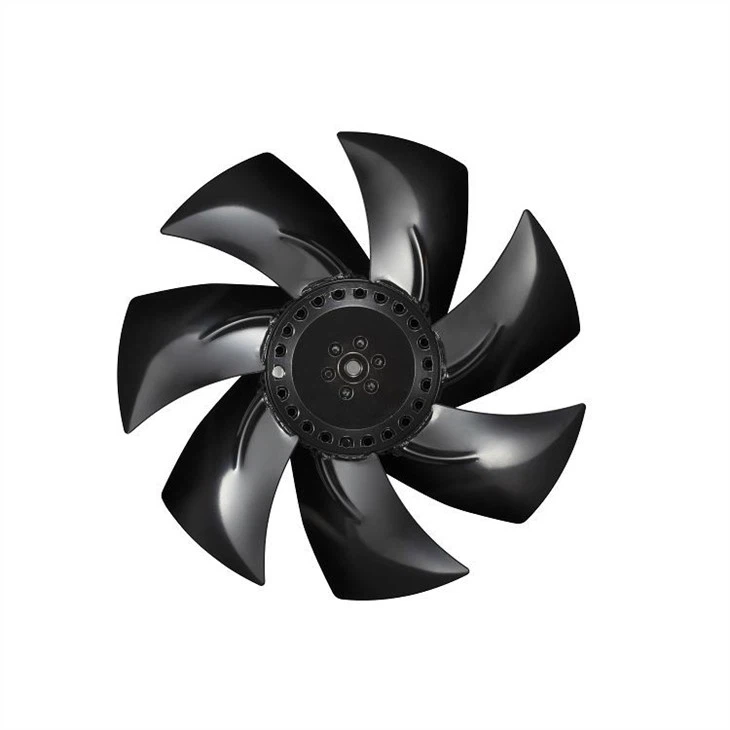

The impeller and propeller of AC Cabinet Cooling Fan is somewhat similar. When it works, most of the flow direction is parallel to the shaft. Secondly, when the fan is not locked, the fan will update, start and operate normally. Finally, our products are cheap and high-quality, and there are different specifications for your selection.
Feature
The AC Cabinet Cooling Fan is made of high-quality materials, which are non-toxic and tasteless. Secondly, when it runs, it runs very fast and has the feature of no noise. More importantly, it is very easy to install and can save you a lot of time and energy. Finally, our products are very durable and have a very long service life.
Product Specification:

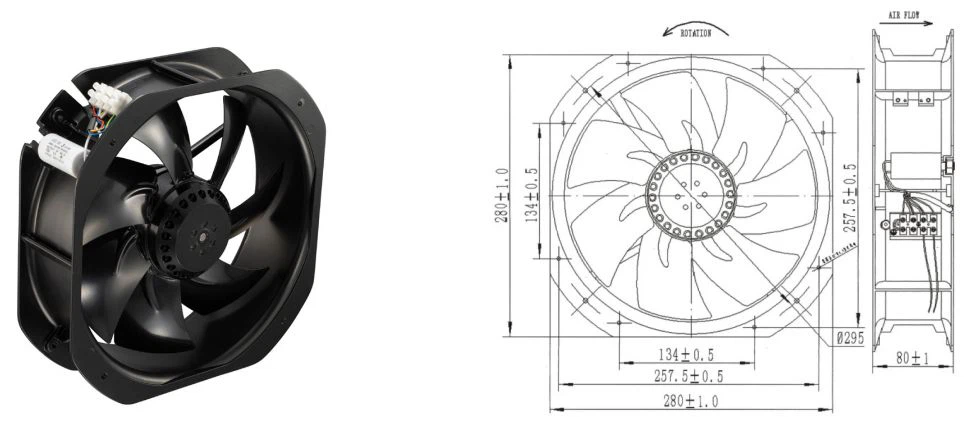

Size：280mm×280mm×80mm
Housing：Aluminum Alloy
Material：Sheet steel、PBT+30GF UL94V-0
Lead Wire：AWG#22 UL 1007（Optional）
Operation：-10℃ ~+105℃
Approvals：CCC、CE
| MODEL | Voltage (VAC) |
Frequency (Hz) |
Current (AMP) |
Power (W) |
Speed (RPM) |

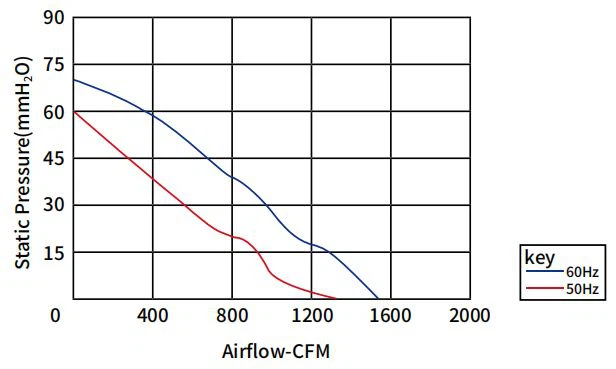

Air Flow (m3/hr) |
Air Flow (CFM) |
Noise Lp:dB(A) |
Weight (kg) |
| HA2808001HB-1 | 115 | 50 | 1.2 | 120 | 2400 | 2280 | 1341 | 65 | 2.803 |
| HA2808001HB-2 | 115 | 60 | 1.2 | 120 | 2500 | 2570 | 1512 | 70 | 2.803 |
| HA2808002HB-1 | 230 | 50 | 0.55 | 120 | 2400 | 2280 | 1341 | 65 | 2.803 |
| HA2808002HB-2 | 230 | 60 | 0.55 | 120 | 2500 | 2570 | 1512 | 70 | 2.803 |
| HA2808003HB-1 | 380 | 50 | 0.32 | 120 | 2400 | 2280 | 1341 | 65 | 2.803 |
| HA2808003HB-2 | 380 | 60 | 0.32 | 120 | 2500 | 2570 | 1512 | 70 | 2.803 |
| HA2808003HB-3 | 380 | 50 | 0.36 | 120 | 2400 | 2280 | 1341 | 65 | 2.803 |
| HA2808003HB-4 | 380 | 60 | 0.36 | 120 | 2500 | 2570 | 1512 | 70 | 2.803 |
