A small axial fan is often the simplest way to remove heat from a control cabinet, power supply, automation device, telecom enclosure, or compact machine. However, the fan with the highest free-air CFM is not automatically the best choice. Real cooling performance depends on the heat load, permitted temperature rise, airflow resistance, voltage, frame size, noise limit, bearing system, operating environment, and installation layout.
For B2B buyers, model selection must also consider supply continuity, dimensional consistency, electrical connections, performance documentation, sample testing, and customization requirements. This guide explains how to choose a small axial fan for an industrial or commercial equipment project without relying on frame size or headline airflow alone.
After defining the required airflow, voltage, size, and working environment, buyers can compare Yian Electric’s small axial fan range.
A small axial fan moves air in a direction roughly parallel to the fan shaft. The motor turns an impeller inside a compact square or round frame, drawing air through one side and discharging it through the other.

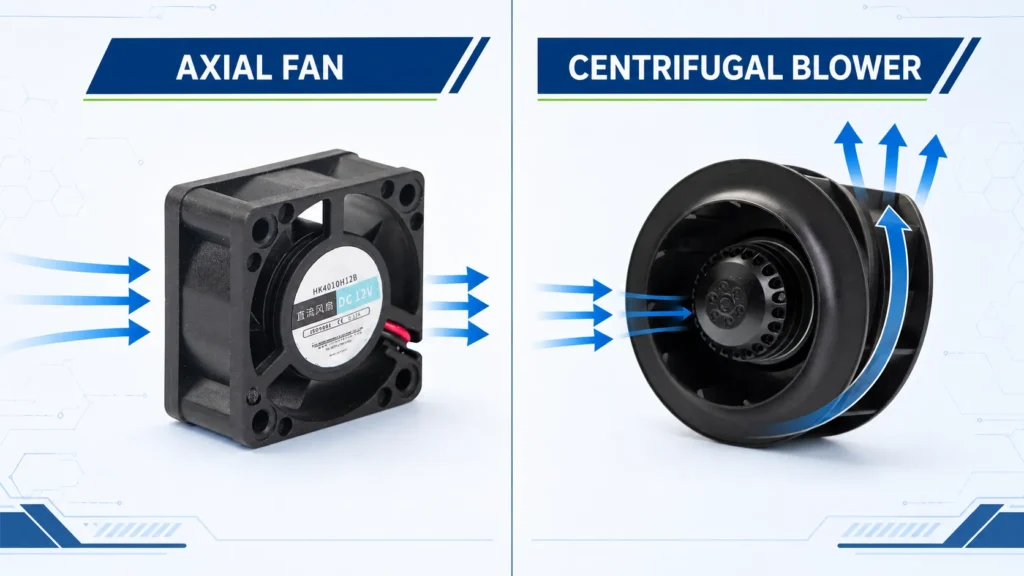

Compared with a centrifugal blower, a compact axial fan normally provides a direct airflow path and a space-efficient mounting format. It is commonly used for:
Small axial fans are available with AC or DC input, multiple frame sizes, different airflow and noise levels, and several bearing or control options. The product must be matched to the installed system, not selected from appearance alone.
An axial fan is a strong starting point when the air can move through a short, reasonably open path. It works well when the objective is to exchange warm enclosure air with cooler ambient air or to move air directly across heat-generating components.
If the air must pass through a dense filter, restrictive heat exchanger, long duct, narrow outlet, or tightly packed internal channel, system resistance may become the dominant requirement. A centrifugal blower or another higher-pressure solution may then perform better.
| Air-system condition | Better starting point | Reason |
|---|---|---|
| Open intake and exhaust, short airflow path | Small axial fan | Efficient direct airflow in a compact frame |
| Control cabinet with moderate component density | Small axial fan after checking the fan curve | Airflow can be sufficient if vents and filters are sized correctly |
| Dense fins, restrictive filter, or narrow internal channel | Compare axial fan with a centrifugal blower | Static-pressure capability becomes more important |
| Air must turn sharply or exit through a directed outlet | Small centrifugal blower | Scroll housing produces directional airflow |
| Localized cooling across a board or power module | Small axial fan or blower, depending on resistance | Geometry and operating point determine the better choice |
The final decision should be based on the airflow–static pressure curve and an installed test.
Begin with the equipment, not the fan catalog. Record:
Use power loss rather than total equipment input power whenever possible. A 1 kW power supply does not necessarily release 1 kW as heat; the thermal load is the power lost inside the enclosure. Obtain loss data from the equipment or component manufacturer.
If several devices produce heat, add their maximum simultaneous losses. Include a reasonable engineering margin for operating variation, component tolerance, dust accumulation, and future configuration changes.
For an early forced-air estimate, ventilation airflow can be approximated from heat load and allowable temperature rise:
Q ≈ P ÷ (20 × ΔT)
Where:
Example: if the internal heat load is 150 W and the target temperature rise is 10°C:
Q ≈ 150 ÷ (20 × 10) = 0.75 m³/min, or approximately 26.5 CFM.
This is a starting estimate, not a guaranteed fan duty point. It assumes simplified air properties and does not include the pressure loss created by internal components, vents, filters, grilles, or ducting. Use thermal simulation or prototype measurements when overheating would create a safety, reliability, or warranty risk.
Fan datasheets commonly show maximum airflow and maximum static pressure. These two maximum values do not occur simultaneously.
As resistance increases, delivered airflow falls. Common sources of pressure loss include:
When comparing models, request the full airflow–static pressure curve rather than selecting only by maximum CFM. If the supplier does not provide a curve, prototype testing becomes even more important.
Improving the enclosure can sometimes be more effective than choosing a faster fan. Increase outlet area, move cables away from the flow path, separate hot and cool air, and position the fan so that fresh air passes over the hottest components before leaving the enclosure.
Match the fan to the power already available in the equipment.
A small AC fan can connect to the specified AC supply and is often used in control cabinets, commercial equipment, and industrial enclosures. Confirm voltage and frequency because performance may change between 50 Hz and 60 Hz.
A small DC fan suits equipment with an existing low-voltage DC bus. DC models can also support functions such as speed control, tachometer feedback, locked-rotor protection, or alarm output when those functions are designed into the fan.
Do not assume that all AC or DC models include the same protection and control features. Confirm each function in the exact model datasheet.
Compare small AC fan options for line-powered equipment or small DC fan options for low-voltage systems.
Check more than the nominal frame width. Record:
A fan that fits the front opening may still interfere with a PCB, terminal block, door, cable duct, or protective grille. For an OEM replacement project, compare the complete drawing rather than relying on a label such as “80 mm fan.”
Avoid placing a major obstruction immediately against the inlet. A smooth intake and a clear exhaust path reduce turbulence, airflow loss, and unnecessary noise. Use arrows on the housing or the manufacturer’s drawing to confirm the airflow direction.
Use the following parameters together:
| Specification | What it tells you | Selection caution |
|---|---|---|
| Airflow, CFM or m³/h | Air volume under the stated test condition | Free-air airflow is not the installed airflow |
| Static pressure, Pa or mmH₂O | Ability to overcome resistance | Check the full curve at the required flow |
| Speed, RPM | Impeller rotational speed | Higher speed can increase airflow, pressure, noise, and wear |
| Noise, dB(A) | Sound pressure under stated conditions | Compare measurement distance and test conditions |
| Input power/current | Electrical load on the supply | Check startup current and supply capacity where applicable |
| Bearing type | Mechanical support and lubrication design | Confirm life at the real temperature, duty, and orientation |
| Life expectancy | Test-based durability reference | Compare temperature and test definition, not hours alone |
For continuous industrial operation, request life data at the expected ambient temperature. A lifetime value at 25°C cannot automatically be applied to a hot cabinet. Also decide whether lower noise, longer maintenance intervals, lower power consumption, or lower purchase cost has the highest project priority.
The fan’s operating environment can change both cooling performance and service life. Confirm:
If a fan is installed with a filter, establish a cleaning or replacement interval. A loaded filter increases resistance and reduces airflow. For critical systems, consider a temperature alarm, tachometer signal, locked-rotor output, redundancy, or preventive replacement schedule.
Ask the supplier which monitoring or control functions are standard, optional, or unavailable. Do not write them into the equipment specification until they are confirmed for the exact model.
| Selection factor | Small AC fan | Small DC fan |
|---|---|---|
| Power source | AC line supply at the specified voltage/frequency | Low-voltage DC supply |
| Typical use | Control cabinets, industrial enclosures, commercial equipment | Electronics, automation modules, power supplies, telecom, compact devices |
| Speed control | Depends on motor and model; verify method | May support voltage or PWM control, depending on model |
| Monitoring | Model-dependent | Tachometer, alarm, or locked-rotor signal may be available |
| Wiring | Line/neutral and protective earth where required | Polarity, connector, and signal wires must be checked |
| Global sourcing concern | Confirm 50/60 Hz and regional line voltage | Confirm DC rail, voltage tolerance, current, and connector pinout |
| Best selection basis | Available AC supply plus fan curve and environment | Available DC rail plus fan curve, control needs, and environment |
Neither type is universally better. Choose the fan that fits the equipment’s electrical architecture, thermal duty, control requirements, and service environment.
| Application | Main selection priorities | Questions to ask |
|---|---|---|
| Control cabinet | Heat load, filter resistance, ambient temperature, AC/DC supply | Is the fan intake or exhaust? How dirty is the environment? |
| Power supply or inverter | Local hotspot, airflow direction, electrical noise, continuous duty | Is fan monitoring required? Is the air path restricted by heat sinks? |
| PLC or automation module | Compact dimensions, DC voltage, connector, low noise | Does the controller need tach or alarm feedback? |
| Telecom enclosure | Continuous operation, monitoring, redundancy, dust/water protection | What is the maximum ambient temperature and maintenance interval? |
| Commercial equipment | Noise, safety, cleaning, supply voltage | Will the fan operate near customers or staff? |
| Distributor inventory | Common sizes, voltage options, documentation, packaging | Which models cover the largest share of customer applications? |
For wholesalers and distributors, stocking only by frame size can create gaps. A practical range should also cover supply voltage, airflow class, bearing option, noise class, connector or terminal format, and the most common regional electrical requirements.
The following examples summarize publicly listed product-page data. They are intended for initial comparison only. Confirm the latest datasheet, performance curve, approvals, dimensions, and test conditions before design-in or bulk purchasing.
| Product | Size | Listed supply options | Listed airflow range | Useful initial comparison |
|---|---|---|---|---|
| DC Small Quiet Fan | 30 × 30 × 10 mm | 5/12 VDC | 3.0–4.7 CFM | Very compact installations with modest airflow demand |
| DC Small Axial Fan | 40 × 40 × 20 mm | 5/12 VDC | 8.6–14.3 CFM | Compact electronics and denser internal layouts |
| DC Cooling Fan | 50 × 50 × 10 mm | 5/12 VDC | 10.3–17.6 CFM | Low-profile equipment cooling where depth is limited |
| AC Dual Ball Bearing Fan | 80 × 80 × 25 mm | 115/230 VAC, 50/60 Hz | 14–23 CFM | AC-powered compact enclosures and control equipment |
| AC Small Axial Fan | 110 × 110 × 25 mm | 115/230 VAC, 50/60 Hz | 41–59 CFM | Cabinets and machine boxes requiring higher airflow |
These rows do not replace a model-level recommendation. Static pressure, noise, current, speed, temperature, bearing, and installation resistance must also match the project.
A small axial fan provides direct airflow for cooling or ventilating compact equipment such as control cabinets, power supplies, automation devices, telecom enclosures, instruments, and machine control boxes.
Start with the internal heat load and allowable temperature rise. A rough metric estimate is Q = P ÷ (20 × ΔT), where Q is m³/min, P is watts, and ΔT is °C or K. Then check system resistance, the fan curve, and the actual installed temperature.
Neither is always better. AC models fit equipment with a compatible AC supply, while DC models suit low-voltage systems and may offer control or monitoring functions. Match the exact model to the power source, airflow duty, environment, and control requirements.
The datasheet maximum is commonly measured near a free-air condition. Filters, grilles, dense components, narrow openings, and ducts create resistance, moving the operating point to a lower airflow.
Send the application, heat load, ambient and target temperature, airflow and pressure requirement, voltage, available size, noise limit, environment, control functions, certifications, quantity, and delivery market.
Send your voltage, available size, heat load, airflow target, operating temperature, noise limit, application, and estimated quantity for model-selection support.
